Two stroke paddy wheat cutter machine in india 43cc 52cc

FOB Reference Price:Get Latest Price
US $53-83 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Mini Harvester
Drive Type:
Other
Usage:
Grain Harvester
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
langyuan
Model Number:
LY-PC520
Certificate:
CE
power source:
gasoline/petrol
power rating:
1.4kw/6500-7000rpm
engine type:
Air-cooled, two-stroke, single cylinder
color:
red orange etc
carburetor:
diaphragm type
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 year
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packed by colored box or according to customer's requirement
Port
Ningbo/Shanghai
Lead Time :
within 15 days after deposit

Two stroke paddy wheat cutter machine in india 43cc 52cc

Notes: The machine needs to add mixed fuel and special two stroke oil is required.

Please use above 90# gasoline.Mixture fuel rating gas : oil = 25:1. Attention :wrong

operation is under warranty.

Packed with two boxes:gasoline and operating rod is singe package.

Applicable scope:plains,hills,terraced field,mud field and so on.It is used for reaping wheat,

rice,bean,bush,reed,highland barley,lucerne etc.

Reap efficiency: 533.3-800 square meters per hour one person,loss ratio<1%.

specification



Engine Model

1E40F-5

Engine Type

Air-cooled, two-stroke, single cylinder

Engine Power

1.2kw/6500-7000rpm

Engine Displacement

43cc

Carburetor

Diaphragm type

Gasoline/2-cycle Oil mixing ratio

25:1

Working pole length

1650mm

Working pole diameter

24 OR 26 OR 28mm

N.W/G.W

7.2/8.4KG



common sense of using and maintenance:

1.normal safety precautions

1)forbid to use indoor

2)stay away from inflammables at least 1 meter

3)while fueling up ,forbid smoking,stop engine from performing and no fuel to overflow

4)while working,wear protection glasses and protection facilities. Please don't use without protection.

5)hands and feet are away from machine before operating and stoping.

2.Check before operating

1)check fuel level from external fuel tank. If it's low,please fuel up to maximun with gas:oil=25:1

2)check air filter,clean it if there is dirty

3)check throttle cable has free space at the bottom,and whether handle operates smooth and steady.

4)check blade,whether it has flaw or gap,it bends or wears out. Change a new one if needed. Check the

nuts whether they are loose,need to screw nut if loose.

5check cutter guard whether it is loose,screw nuts if needed.check protection guard whether it damaged or not,change it if needed.

3.maintenance

1)take spark plug apart to clean carbon deposit,measure (electrode) gap between 0.6mm-0.7mm

2check fuel filter and clean fuel tank,pour out the fuel,take out the filter then clean it softly,clear away the water the dirt in the fuel tank.

3)check whether the heat sink is dirty through engine hood,clear it if it's dirty

4)check fuel pipe,change it if it is aging or leak oil.

5)change blade in time







why choose us.

1.We has a group of professional Technicians with rich experience and excellent performance mechanism and experience works.

2.We are assure our powerful competitive price will help you win alots in the market.

3.All machine are take serious quality control comply with relevant oversea regulation,will supply specific QC report to clients before delivery.

4.All machine and packing can be customized with clients' color & LOGO ,have top designer to helo OEM  design.

5.Excellent after-sales service for long-term cooperation but not one-time job.

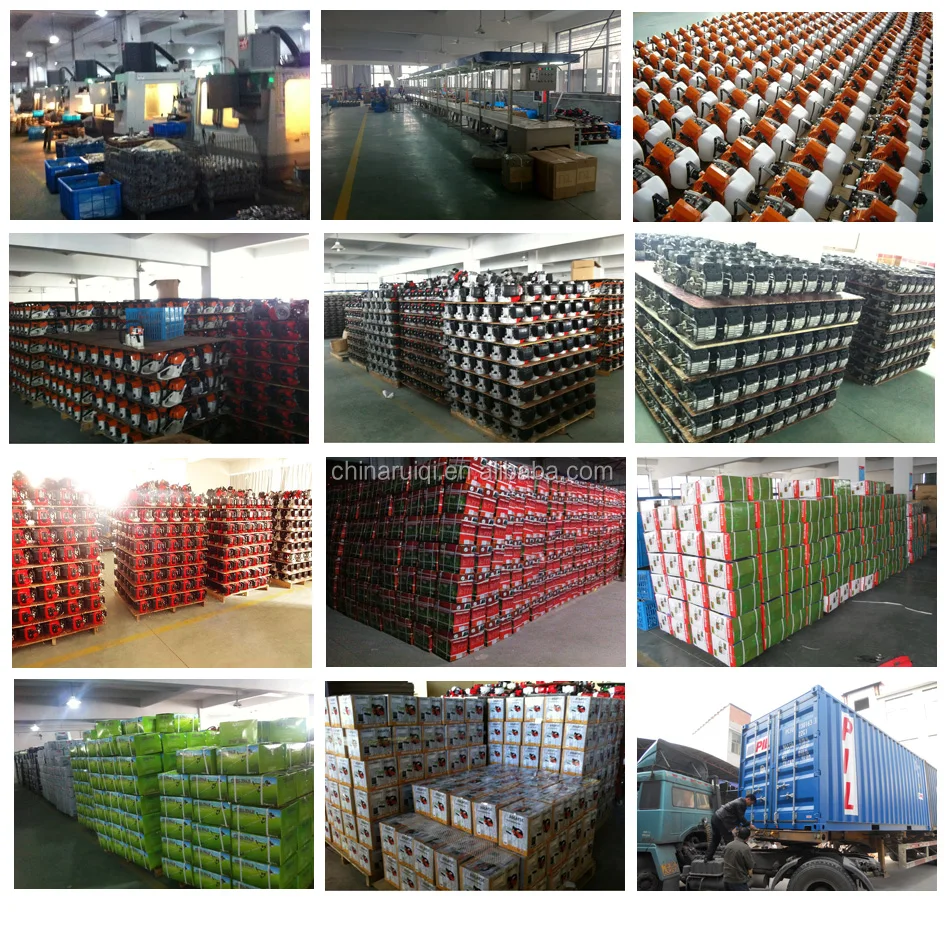

Welcome to visit our factory.
